- One (1) 20+4 ATX power connector (supports 20-pin and 24-pin)
- One (1) 12V P4 ATX power connector (4-pin)
- Three (3) large power connectors (4-pin)
- Three (3) SATA power connectors
- One (1) PCI-Express power connector (6-pin)
- One (1) Dell P6 (6-pin)
- One (1) small power connector (4-pin)
- One (1) 4-pin HP Power
- Quiet/Low-noise Operation
- Support 6-pin Auxiliary Cable
- Highly Efficient
- Over Power and Voltage Protection
- Designed by Athena Power

Dimensions:
Depth: 4"; Height 3.25"; Width x 5.75"

Replacement for:
Dell PowerEdge 2300 power supply replacement.

Dell PC Models:
Dell PowerEdge 2300

DC Output:

Load Max
+3.3V 16A
+5V 21A
+12V 21A
-5V 0.5A
-12V 0.8A
+5VSB 2.5A

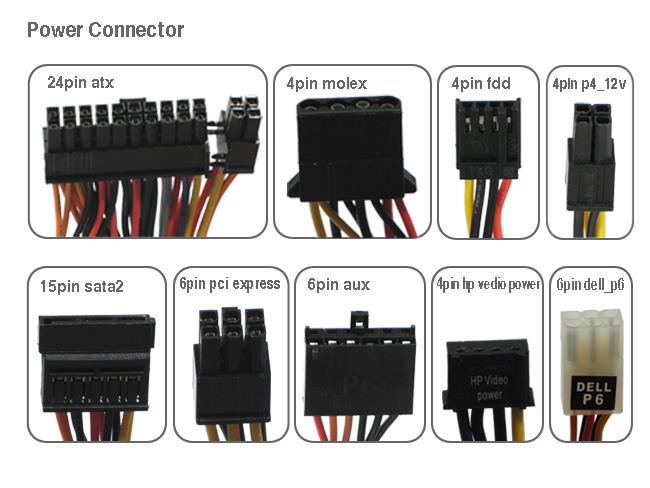

This power unit has one (1) 20+4 ATX connector, three (3) peripheral power connectors, one (1) floppy drive connector, one (1) ATX12V connector, three (3) SATA connectors, one (1) PCI-Express, one (1) auxiliary power connector, one (1) 4-pin HP Video connector, and one (1) 6-pin Dell P6:



1. The power supply supports ATX 20 Pin and 24 Pin Motherboards (20+4 Connector).
